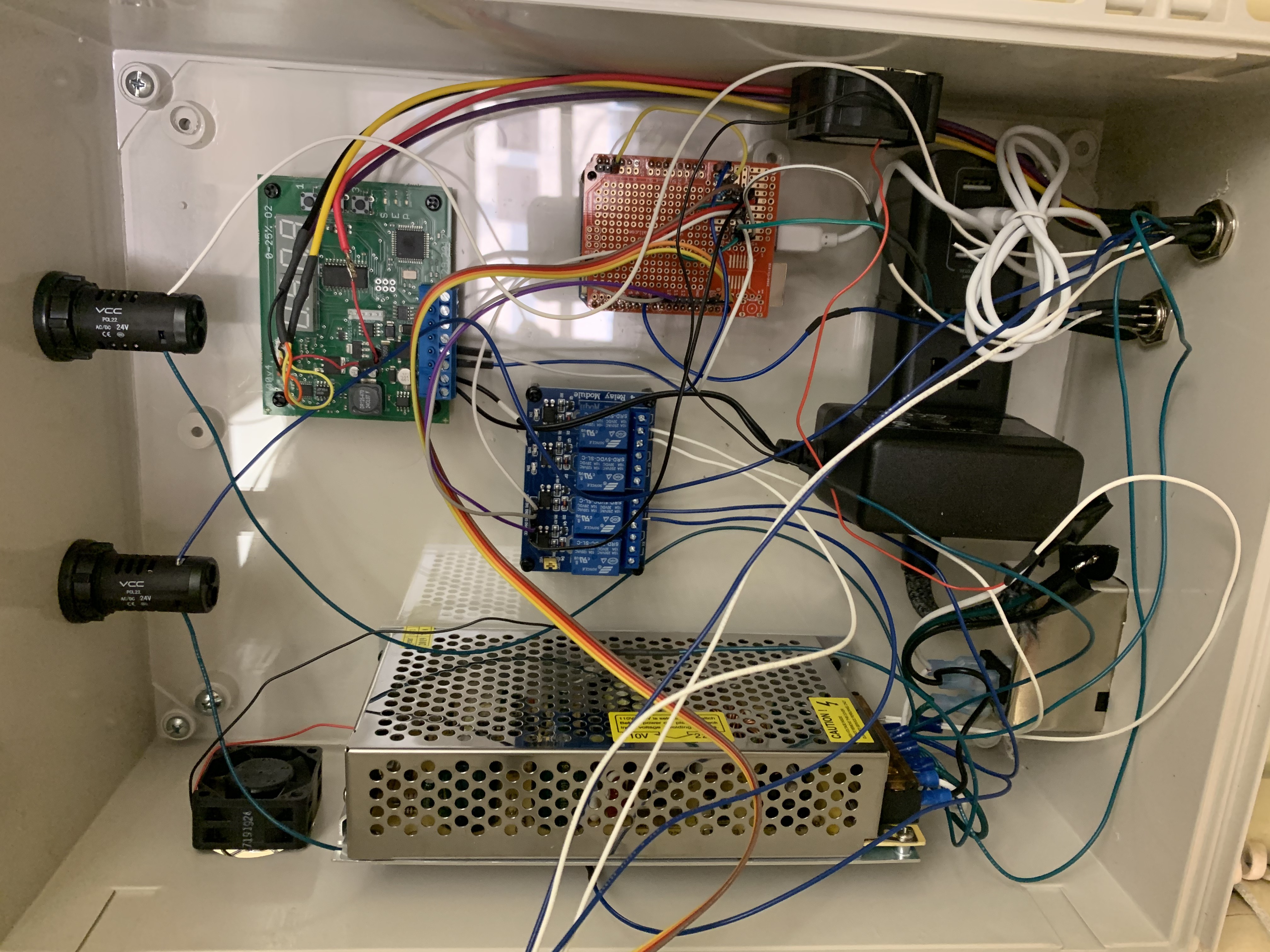

We built custom Humidity, Oxygen, and Temperature (HOT) monitors.
These boxes were built to allow us to monitor the helium gas from several key locations in the system.
| Part Description | Company | Catalog # | Quantity |
|---|---|---|---|
| Humidity and Temperature Sensor | Amazon | link | 1 |
| 4 Site Relay | Amazon | link | 1 |
| 24V Power Supply | Amazon | link | 1 |
| O2 Sensor | CO2 Meter | tr250z | 1 |
| Arduino Yun Rev 2 WiFi | Mouser | 782-ABX00020 | 1 |
| Arduino Shield | Amazon | link | 1 |
| Red LED | Mouser | 593-PCL2224V100B | 1 |
| Green LED | Mouser | 593-PCL2224V500B | 1 |
| Power Passthrough | Mouser | 446-084.0031.00 | 1 |
| Fan | Mouser | 472-1608KL05WB50L00 | 2 |
| Fan Cage | Mouser | 670-G402 | 2 |
| Project Box | Mouser | 563-NBF-32026 | 1 |
| Power Strip | Amazon | link | 1 |
| Aviation Plug 8 pin | Amazon | link | 2 |
| Aviation Plug 7 pin | Mouser | link | 1 |
| KF 50 Custom Passthrough | LDS Vacuum | Custom | 1 |
| LCD Screen I2C | Amazon | link | 1 |
| Actuated Valve | Automation 4 Less | S1000F-8TTISO-024AC/DC | 1 |
